Steel

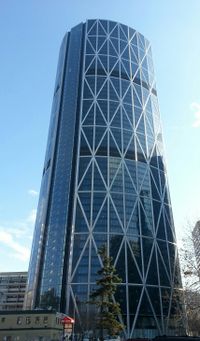

Figure 1. Millions of tonnes of steel are used to build skyscrapers.[1]

Steel is an alloy of iron with a varying carbon content (typically around 0.5-1.5%), and can also contain different elements depending on the type of steel desired. Whereas iron on its own is relatively soft and rusts easily, steel is hard, tough, and corrosion resistant.[2] This makes steel an extremely useful material that is used almost everywhere in society, from building skyscrapers and bridges to paperclips and thumbtacks.

There are thousands of types of steel, developed to handle different engineering needs. The most common type one might see in a typical day would be stainless steel, which contains relatively high amounts of chromium and nickel used to achieve a high corrosion resistance while also being easy to polish and sterilize.[3]

Global steel production and consumption

China is the world's largest producer of steel, producing 822 million tonnes in 2014. That's over 7 times the amount that the 2nd largest producer, Japan, put out at 110 million tonnes. Just beneath Japan in production was the USA, outputting 88.2 million tonnes.[4]

Countries that are building a lot of infrastructure use more steel per person. This steel use is called the apparent consumption of steel which varies from country to country. This is given in units of kilograms per capita, meaning kilograms of steel used per person in the year 2014. South Korea had the largest steel consumption per capita, at 1118.8 kg, while Taiwan and China had 837.1 kg. Canada ranked as the 8th highest, with 428.5 kg/person consumed.[4]

Energy use for steel

The steel industry is extremely important, driving many economies and providing material for infrastructure all around the world. In 2013, 1.6 billion tonnes of steel were produced worldwide, which is expected to increase to 2.5 billion tonnes per year by 2050.[5]

Steel helps extract primary energy from the environment and uses a fair amount of energy. Around 18% of the world's industrial energy use goes into the mining, processing and manufacturing of iron and steel products.[6] In terms of the actual energy, it uses about 19 of the 106 exajoules (1 exajoule = 1018 joules) input into the industrial sector each year.

Uses of steel in energy production

Figure 2. High voltage power lines require large steel towers known as pylons.[7]

Steel is a crucial material in building a reliable energy network. It is used to manufacture:[5]

In renewable energy production

Figure 3. Wind turbine.[8]

Renewable energy technologies also rely on steel for the manufacturing.

Below is a Sankey diagram showing that a significant fraction of the world's industrial total final consumption of energy goes into iron and steel. Change the name of the country to see how this number varies around the world (specifically looking at the OECD vs. non-OECD total is interesting too).
