Current transformer

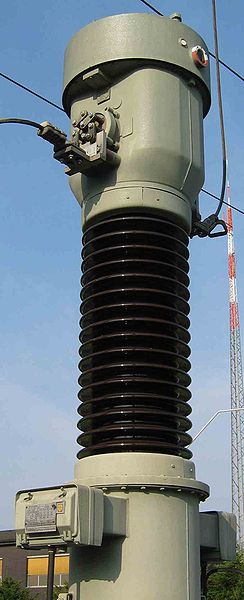

Figure 1. An example of a current transformer.

Current transformers measure the amount of electric current flowing through a particular wire on the electrical grid[1] by making a secondary current that is proportional (but much less than) the amount of current flowing in that wire.

A current transformer is made of a transformer surrounding a current-carrying conductor. The conductor serves as the primary for the transformer. The current passing through the conductor generates a magnetic field which cuts through to the secondary winding generating a secondary current proportional to the current through the primary (conductor). This device is useful as a current measuring device because it allows ratio to be applied where the full current doesn't matter. For example a 600:1 current transformer would generate 1 A of secondary current for every 600 A of primary current. This is extremely useful to have for the electrical grid because it allows for the measurement of high-current values without having to interrupt operating circuits.[1]

For Further Reading

For further information please see the related pages below:

References

  1. 1.0 1.1 R.T. Paynter, “Basic Electric Components and Meters,” in Introduction to Electricity, 1rst ed. NJ: Prentice-Hall, 2011, ch. 21, sec. 21.5, pp. 935-936.
