Solar chimney

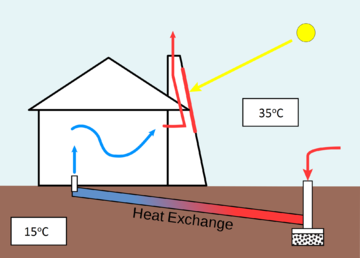

Figure 1. A diagram of a solar chimney that uses a secondary vent that travels below ground. This helps to cool intake air when the chimney is used for cooling.[1]

A solar chimney is a type of passive solar heating and cooling system that can be used to regulate the temperature of a building as well as providing ventilation. Like a Trombe wall or solar wall, solar chimneys are a way to achieve energy efficient building design. Essentially, solar chimneys are hollow containers that connect the inside part of the building to the outside part of the building.[2]

How it Works

Solar chimneys are easy and inexpensive means to heat and ventilate a building. First, a chimney is built and coated in some dark or black material. It is coloured black because this minimizes the amount of sunlight that is reflected off of the chimney, absorbing more of the heat and ensuring more of the heat is transferred to the air inside the building.[2] As well, these chimneys are generally placed on a South facing wall if the home is in the Northern hemisphere. For an explanation of why it is the south facing wall, click here.

The process of heating a space using a solar chimney is fairly simple. When the solar radiation hits the side of the chimney, the column of air inside the chimney is heated. If the top exterior vents of the chimney are closed, the heated air is forced back into the living space. This provides a type of convective air heating. As the air cools in the room it is pulled back into the solar chimney, heating once again.[3] When solar chimneys are used for heating, they operate similarly to Trombe walls.

Cooling a space using a solar chimney is slightly different than cooling using a Trombe wall. Since a roof overhand cannot be installed in addition to a solar chimney, two additional vents are present. The first vent has been mentioned, the one at the top of the chimney.[4] The second is at the opposite end of the building, providing an opening between the building and outside air to allow for ventilation. When solar radiation hits the side of the chimney, the column of air inside the chimney is again heated. The vent at the top of the chimney is kept open so this heated air is not trapped. This heated air is pulled up and out of the chimney, pulling new air in from the outside and creating a sort of "draft" that provides cool, fresh air into the building.[3]

References

  1. Wikimedia Commons. (August 10, 2015). Solar Chimney [Online]. Available: https://upload.wikimedia.org/wikipedia/commons/thumb/9/95/Solarchimney.svg/2000px-Solarchimney.svg.png
  2. 2.0 2.1 Greenzly. (August 7, 2015). How do solar chimneys work? [Online]. Available: http://www.greenzly.org/article/how-does-solar-chimney-work/277
  3. 3.0 3.1 Autodesk Sustainability Workshop. (August 10, 2015). Stack Ventilation and Bernoulli's Principle [Online]. Available: http://sustainabilityworkshop.autodesk.com/buildings/stack-ventilation-and-bernoullis-principle
  4. N. Bansal. R. Mathur. and M. Bhandari. “Solar Chimney for Enhanced Stack Ventilation.” Building and Environment, vol. 28, pp. 373-377, July 1993
