LNG carrier

Figure 1. LNG carrier. Note the size of the LNG ship compared to the size of the one to the right of it, the LNG ship is enormous![1]

A LNG carrier is a ship that is designed for the transport of liquefied natural gas in its chilled tanks. Worldwide there are around 360 of these advanced, specialized vessels that are used specifically for the transport of liquefied natural gas.[2] Compared to conventional vessels, LNG carriers release less greenhouse gas emissions because of their natural gas-fueled propulsion system.

Since the gas is transported in its liquid form and because of their physical properties, they are transported either at pressures much greater than atmospheric pressures, at very low temperatures, or some combination of the two. Therefore, the ships can be classified as:[3]

  1. Fully pressurized
  2. Semi-pressurized and refrigerated
  3. Fully refrigerated

In addition, gas carriers can be categorized based on the hazard level of the material being transported:[3]

  1. Type 1G: Designed to carry the most hazardous cargo
  2. Type 2G and 2PG: Designed to carry cargo with a lesser degree of hazard
  3. Type 3G: Designed to carry the least hazardous cargo

Construction

LNG carriers are built using a double hulled construction, with four or five large tanks to hold the liquefied gas. These tanks are generally composed of several layers of material to prevent leaks and keep the LNG at the cold temperature necessary to keep it in its liquid form.[2] These tanks are also heavily insulated, minimizing the amount of LNG that boils off or evaporates during the transportation of the gas. Some vessels actually utilize this "boil off" to fuel the vessel itself. The tanks themselves are generally made of aluminum or 9% nickel steel.[4]

The materials used for the hull of the ship are designed to accommodate a wide range of temperatures. However, if the material in the hull gets too cold it will become brittle, thus it is important that the tanks (at temperatures of -160°C) are insulated sufficiently to protect the hull from the harmful effects of these temperatures.[5] The double hulled construction helps with this, as the insulated tanks are located within the inner hull. There is a space between the inner and outer hull to reduce the transfer of heat and protect cargo tanks in the event of some emergency. The cargo tanks are separated from each other and other components of the ship by dry compartments.[5]

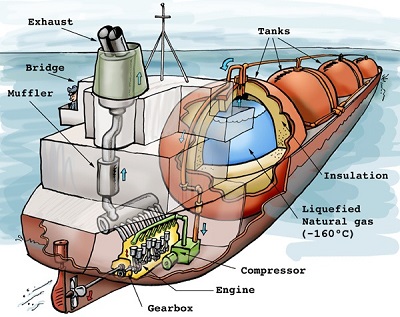

Figure 2. Cartoon showing different components of an LNG carrier.[6]

In addition to these ships being advanced in the way that they hold the LNG, they are also equipped with advanced gas and fire detection and suppression systems to ensure that even a small leak would trigger a response.[2] This makes a catastrophic fire on a LNG carrier extraordinarily unlikely.
