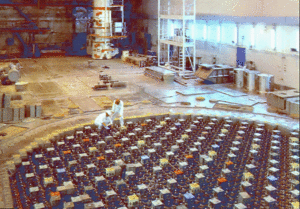

Figure 1. Top of an RBMK reactor core in Ignalina, Lithuania. The plant was closed down in 2009.[1]

RBMK is a Soviet-designed nuclear reactor that uses enriched uranium as its fuel. It is a rather unusual design as it uses graphite as its moderator, and was designed for plutonium production—but was also used extensively for electrical generation. The combination of graphite as a moderator and light water as coolant is unique to this reactor as no other reactors in the world use both.[2]

The RBMK is famous as it was the ill-fated reactor involved in the Chernobyl disaster. As the disaster showed, the RBMK had some key design flaws. In particular, the location of the control rods, the containment structure, and the reactor's positive void coefficient proved to be quite unsafe. Since the disaster in 1986, the remaining RBMK reactors in use had some significant design changes to address these problems and ensure safety in future operations. RBMK reactors operated for decades in Russia after the Chernobyl disaster.[2]

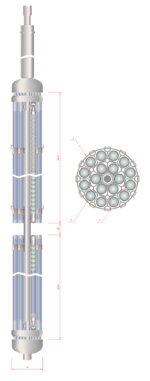

Figure 2. Fuel rod assembly of the RBMK uranium fuel.[3]

As mentioned above, the reactor is quite unique compared to other reactor designs. These design characteristics will be highlighted in this section, showing its distinction from the other reactor types.


Slightly enriched uranium pellets are packed into a 3.65 meter long zircaloy tube, forming a fuel rod. 18 of these fuel rods are combined into a cylindrical carriage to form a fuel assembly. Two of these rods are loaded into the pressure tubes.[2] Refueling of the uranium can be done while the reactor is operating since the fuel channels are isolated and can be lifted out of the core safely.

Pressure tubes

With the fuel loaded in these strong metal tubes, these pressure tubes are arranged vertically inside the core of the reactor. Cool light water flows through it which absorbs heat from the fuel assembly. This allows the fuel to cool and causes the light water's temperature to be at 290oC.[2] At this temperature the water is in the form of steam and emerges from the top of the core.

Graphite moderator

This is one of the key distinctions from other reactors. Graphite—the same used in pencils, except purer—is loaded into the container of the core which is about the size of a small house.[4] Graphite works as the moderator, which means it slows down neutrons in order to sustain a continuous fission chain reaction.[2] A distinction from other reactors is that the moderator here is not cooled down by any coolant. Therefore, the graphite operators at a hot 700oC—in contrast, the CANDU reactor's moderator is cooled down to 70oC.[4]

The blocks are pierced by about 1660 holes where roughly 1600 pressure tubes fit through, with an even distribution of control rods throughout, as seen in Figure 1 (colored squares are control rods).[4]

Control rods

The control rods are made of boron carbide, which act to absorb neutrons.[2] This controls the rate of fission in the reactor; the further the control rods are inside the core, the more neutrons they absorb and the slower fission occurs. There are automatic, manual, and emergency control rods which can all be placed into certain depths depending on the conditions inside the core and the goals of operation.

The use of control rods in the Chernobyl disaster were a key point for the events that occurred. It was said that "not even the Premier of the Soviet Union is authorized to run with less than 30 rods!", however during the events of the disaster, only about 6 - 8 control rods were inside of the core.[4]

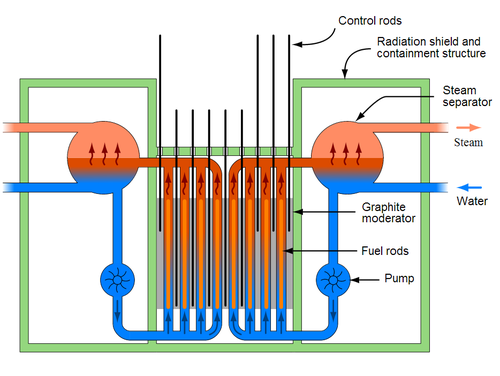

Figure 3. A diagram of an RBMK reactor.[5]

Coolant/steam separator

As mentioned prior, light water is used as the coolant and the working fluid. It acts to keep the fuel relatively cool, and to boil to steam and spin the plant's turbines. It operates in two loops as seen in Figure 3 to the right.

Each of the two loops has two steam drums (orange circle). This is where the steam from the heated coolant is fed to the turbine to produce electricity in the generator.[2] Each loop has a turbine that it feeds steam to. The steam is then condensed and fed back through as coolant.


Seen in Figure 3, the containment structure is not as sound as those seen in more modern nuclear power plants. This proved fatal in the Chernobyl accident as the pressure inside of the core blew off the top covering of the core, exposing the radioactive core to the outside world. The containment is made of concrete and metal, that act as a radiation shield.

Void Coefficient

main article

The void coefficient in the RBMK is positive. What this means is that when there is an increase of steam in the core—a "void" of neutron-absorbing water—the reactivity of the reactor will increase. In contrast, a reactor with a negative void coefficient will decrease in reactivity, as seen in most Western reactors. This negative void coefficient (which is a safer design) happens because the water in most reactors acts as both the coolant and moderator so when there are voids present, there is a correspondingly less amount of moderator which balances or reduces the power output. The RBMK reactor's water wasn't a moderator (the graphite was) it was a neutron absorber. The lack of water meant more neutrons were there to make nuclear reactions, which is how things got so out of control!

This positive coefficient was another key aspect of the RBMK in reactor unit 4 of the Chernobyl power plant. In the events of the accident, the excess production of steam (meaning an increase of voids) caused the void coefficient to become unsafely large. When the power began to increase, even more steam was produced, which in turn led to an increase in power.[2] This led the reactor to produce over 100x its rated power output, causing extreme temperatures and pressures inside the core, and causing failure.[4]

Changes after Chernobyl

The Chernobyl disaster proved that the RBMK design had to be addressed. The key flaws were mentioned above, and the solutions to each of them are:[2]

  • Reduction of void coefficient: This task was accomplished by the installation of many fixed neutron absorbers, increase of minimum number of control rods inside the core, and an increase of uranium enrichment.
  • Improved emergency system: The system in the Chernobyl reactor was easily bypassed by the operator and lacked efficiency and speed. Change in design of the control rod inputs cut the insertion time from 18 seconds to 12 seconds, and the installation of a fast acting emergency protection system (FAEP) which introduced negative reactivity extremely fast.
