Electric vehicle

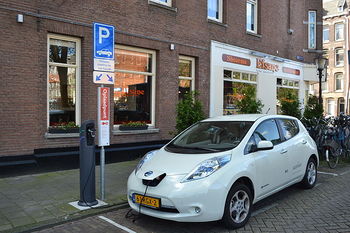

2013 Nissan Leaf re-charging in Amsterdam, Netherlands [1]

Electric vehicles (EV) are vehicles that use electric motors as a source of propulsion. EVs utilize an onboard electricity storage system as a source of energy and have zero tailpipe emissions. Modern EVs have an efficiency of 59-62% converting electrical energy from the storage system to the wheels. EVs have a driving range of about 60-400 km before needing recharging.[2] The typical recharge time is 4 to 8 hours depending on the battery design, but can be faster thanks to a supercharger: charging half the battery in 20 minutes.[3] The efficiency of electric motors is superior to that of internal combustion engines and is improved further by integrating new technologies such as regenerative braking and active suspension.[4]

Common types of EVs include electric trains, electric motorcycles, plug-in electric cars, and hybrid cars.

How it works

Electricity is transferred from a battery to a controller.[5] The controller then sends the electricity to the electric motors when needed. The accelerator is connected to a variable switch which tells the controller how much power to send to the electric motors. Power output can vary from zero to full as needed.[6]

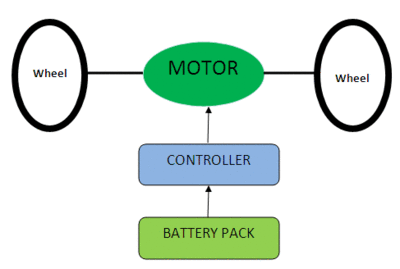

Parts an of electric vehicle and direction of the flow of electricity [7].

Onboard storage systems

Electric vehicles can have three different types of on-board energy storage systems:

Electrochemical energy: Energy can be stored thanks to chemical properties. Chemicals are stored, and the reaction of these chemicals produces electricity.[8] These electric charges can be passed through a circuit in order to produce an electrical current. Batteries are the most common chemical energy storage systems in EVs.[9] Lithium ion batteries are currently the dominant battery system employed in EVs.[10] They have been an attractive choice for electric vehicles because they exhibit a high energy density and a long life cycle.[11]

Static energy: Energy may be stored as static electricity, caused by a build-up of electrons on an object. The build-up of electrons causes an imbalance of charge in the object, which can be released to create an electric current. Electrolytic capacitors are the most common form of static energy storage in an EV.[12] Currently, electrolytic capacitors are very popular in electric cars because they can increase the driving range of an EV and increase the battery's life span.[6] Graphene supercapacitors also exhibit the potential to act as the primary power source of an electric vehicle due to their short recharge times and relatively high power density when compared with the electrolytic capacitor.[13]

Kinetic energy: Energy stored due to momentum, is called kinetic energy storage. The most popular design in EVs is the flywheel.[12] The flywheel is a disk that spins on a fixed axis, storing energy in the form of rotational momentum.

Pros and cons

Pros Cons
Price
Low operating price:
Very low price for refueling.
Few moving parts in electric motors translates to low maintenance.
High upfront costs:
High initial price of energy storage systems.
Cost to replace batteries periodically.
Pollution
Electric motors have zero emissions during operation. Other sources of pollution:
Various electricity generation techniques can have significant environmental impacts.
Current energy storage system such as batteries use hazardous chemicals and are not easy to recycle.
Range and efficiency
High efficiency compared to internal combustion. Low range because of low energy density.

The highest range of an electric car is obtained by the Tesla model S 85 kWh that was released in late June 2012 and that has a certified range of 426 km.[14]

Safety
EVs can be engineered safe cars.

The new Tesla Model S has the best score in safety by the National Highway Traffic Safety Administration (NHTSA).[15]

Lithium ion batteries have the potential to heat up and eventually burn.

Emissions

main article

While it is commonly known that EVs produce no tailpipe emissions (they don't have a tailpipe...) they do produce something called "upstream" emissions, or "beyond tailpipe" emissions (the term used by the EPA).[16] Click main article to learn more about these emissions.

References

  1. Bontenbal. (2011, Sept. 13). Nissan Leaf aan Amsterdamse laadpaal. [Online]. Available: http://en.wikipedia.org/wiki/File:Nissan_Leaf_aan_Amsterdamse_laadpaal.jpg. [Accessed: 31-Oct-2013].
  2. Tesla “Tesla Model S Features. [Online]. Available: http://www.teslamotors.com/models/features#/performance [Accessed: 05-Dec-2013].
  3. Tesla “Supercharger [Online]. Available: http://www.teslamotors.com/supercharger [Accessed: 05-Dec-2013].
  4. U.S. department of energy. (November 1, 2013). Electric vehicles. [Online]. Available: http://www.fueleconomy.gov/feg/evtech.shtml
  5. Z. Amjadi and S. S. Williamson, “Power-Electronics-Based Solutions for Plug-in Hybrid Electric Vehicle Energy Storage and Management Systems,” IEEE Trans. Ind. Electron., vol. 57, no. 2, pp. 608–616, Feb. 2010
  6. 6.0 6.1 Z. Amjadi and S. S. Williamson, “Prototype Design and Controller Implementation for a Battery-Ultracapacitor Hybrid Electric Vehicle Energy Storage System,” IEEE Trans. Smart Grid, vol. 3, no. 1, pp. 332–340, Mar. 2012
  7. Engineers Garage. (2012). Electric Cars. [Online]. Available: http://www.engineersgarage.com/articles/what-is-electric-cars-structure-working
  8. University of California Davis “Batteries: Electricity though chemical reactions [Online]. Available: http://chemwiki.ucdavis.edu/Analytical_Chemistry/Electrochemistry/Voltaic_Cells/Case_Study%3A_Battery_Types/Batteries%3A_Electricity_though_chemical_reactions [Accessed: 05-Dec-2013].
  9. C. E. Thomas, “Fuel cell and battery electric vehicles compared,” Int. J. Hydrogen Energy, vol. 34, no. 15, pp. 6005–6020, Aug. 2009
  10. S. K. Biradar, R. A. Patil, and M. Ullegaddi, “Energy storage system in electric vehicle,” in Power Quality ’98, 1998, pp. 247–255
  11. G. Karimi and X. Li, “Thermal management of lithium-ion batteries for electric vehicles,” no. January 2012, pp. 13–24, 2013
  12. 12.0 12.1 J. Larminie and J. Lowry, “Alternative and Novel Energy Sources and Stores,” in Electric Vehicle Technology Explained, John Wiley & Sons, 2003, pp. 69–80.
  13. X. Yang, C. Cheng, Y. Wang, L. Qiu, and D. Li, “Liquid-mediated dense integration of graphene materials for compact capacitive energy storage.,” Science, vol. 341, no. 6145, pp. 534–7, Aug. 2013
  14. Tesla Motors. Model S Features | Tesla Motors [Online]. Available: http://www.teslamotors.com/models/features#/battery [Accessed: 03-Nov-2013].
  15. Paul A. Elsensteln “Tesla says Model S gets best NHTSA safety rating ever NBC NEWS, Aug 2013.[Online]. Available: http://www.nbcnews.com/business/tesla-says-model-s-gets-best-nhtsa-safety-rating-ever-6C10960098 [Accessed: 03-Nov-2013].
  16. http://www.fueleconomy.gov/feg/Find.do?zipCode=30043&year=2014&vehicleId=34699&action=bt3

Authors and Editors

Jordan Hanania, James Jenden, Ryan Leeson, Tamsin Mah, Jasper Martin, Nicolas Moisson-Franckhauser, Kailyn Stenhouse, Jason Donev
Last updated: August 29, 2017
